Obstruction light aircraft warning light l 864 obstruction light obstacle light aircraft warning lights on towers medium intensity obstruction light medium intensity aviation light
Detailed introduction

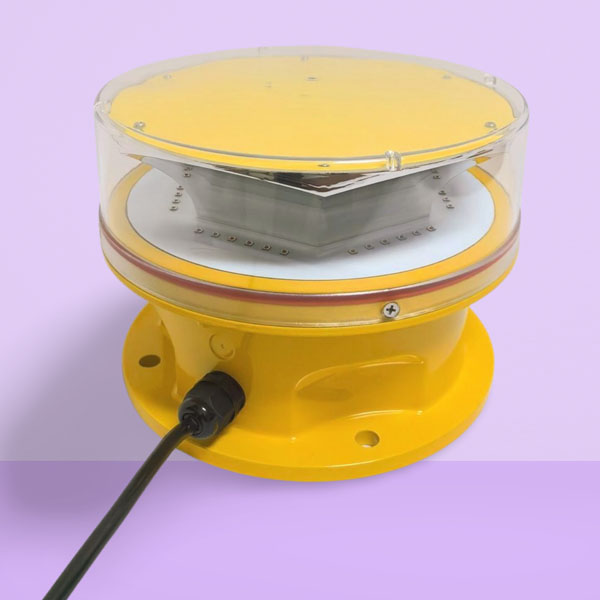

The obstruction light aircraft warning light, specifically the L864 obstruction light, is a crucial safety feature for towers and other structures.
This medium intensity obstruction light is designed to alert aircraft pilots of potential obstacles. The L864 model stands out for its reliable performance and high visibility. It emits a distinct signal that can be easily detected even from a distance, ensuring that pilots have ample time to take evasive action if necessary.
Constructed with quality materials, these lights are built to withstand harsh environmental conditions. They are resistant to wind, rain, and extreme temperatures, ensuring continuous operation throughout the year.
The medium intensity aviation light feature of the L864 obstruction light provides a balance between visibility and power consumption. It is bright enough to catch the attention of pilots without being overly intrusive or consuming excessive energy.
Installing these obstruction lights on towers is a straightforward process. They can be mounted securely using appropriate brackets and hardware. Once installed, they require minimal maintenance, making them a cost-effective solution for ensuring aviation safety.
In addition to their primary function of warning aircraft, these lights also serve as a visual indicator for ground personnel. They help to identify potential hazards and ensure that proper safety precautions are taken.
Overall, the obstruction light aircraft warning light, such as the L864 obstruction light, plays a vital role in safeguarding aviation safety. By clearly marking potential obstacles on towers and other structures, these lights help to prevent collisions and ensure the smooth operation of air traffic.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-864.
Features:
1. Employ super bright CREE brand LEDs, which offer high intensity while consuming relatively less energy.
2. The input voltage can be either DC (12-48V DC) or AC (100-265V AC 50-60Hz).
3. The obstruction light protective cover has a unique design and is made of polycarbonate that is UV-protected.
4. The efficient photometric design ensures excellent light distribution, guaranteeing compliance with ICAO and FAA requirements.
5. The base material is die-cast aluminum, which has strong corrosion resistance, provides protection against shock and vibrations, and offers a long service life.
6. A special valve is installed beneath the base to ensure that air can pass through while preventing water from entering. This way, the temperature of the entire Type B medium intensity aviation obstruction lighting will not become excessive.
7. Equipped with a built-in photocell for operation during both day and night.
8. Offers surge and lightning protection.
9. Various optional functions are available, such as GPS synchronous flashing, sequence flashing, alarm relay, and others.
Specification:
|
Product Name |
Obstruction light aircraft warning light l 864 obstruction light obstacle light aircraft warning lights on towers medium intensity obstruction light medium intensity aviation light |
|
Mode NO.: |
Type B: AO-MI-B2; Type C: AO-MI-C2 |
|
Color: |
Red |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
Type B: 2,000cd±25% (Night) Type C: 2,000cd±25% (Night) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
3-7 degree |
|
Flashing Characteristics:
|
Type B: 20-60FPM, Type C: Fixed Lighting.
|
|
Operation Mode: |
Night working, daytime off |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<15W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, ABS reflector and Powder coated die-casting aluminum base. |
|
Weight(kg): |
2.5kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

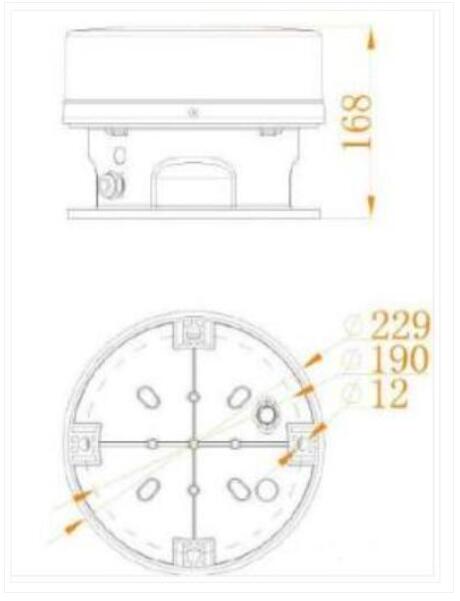

Dimension & Installation:
Applications:
The obstruction light aircraft warning light, specifically the L864 obstruction light, is a crucial safety measure for towers and other structures.
In the realm of aviation safety, these medium intensity obstruction lights play a vital role. Installed on towers, they serve as a visible warning to aircraft pilots, alerting them to potential obstacles. The L864 obstruction light is designed to emit a distinct signal that can be easily detected even from a distance, ensuring that pilots have ample time to take appropriate action.
The medium intensity aviation light feature of the L864 is ideal for marking structures that pose a moderate risk to aircraft. It provides a balance between visibility and power consumption, making it an efficient and effective solution.
These lights are constructed with durability in mind. They are built to withstand harsh environmental conditions, including wind, rain, and extreme temperatures. This ensures reliable performance and long service life.
The obstruction light aircraft warning lights on towers are essential for areas with high air traffic or near airports. They help to prevent collisions and ensure the safety of both aircraft and ground structures.
In conclusion, the L864 obstruction light and other medium intensity aviation obstruction lights are indispensable for enhancing aviation safety. Whether on communication towers, wind turbines, or other tall structures, these lights provide a crucial warning to pilots and contribute to the smooth operation of air traffic.
